CDC-16 Switch tamping machine
性能及特點(diǎn)

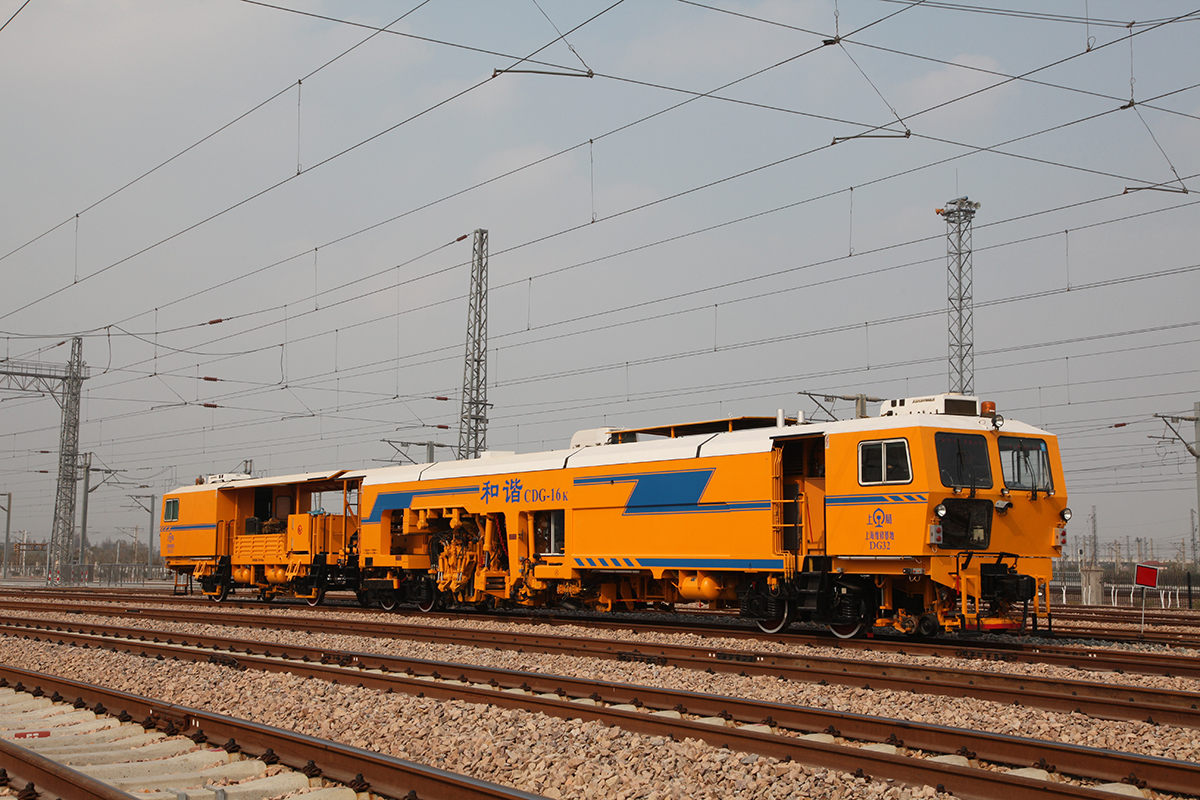

The CDC-16 Turnout Tamping Machine is dedicated to the maintenance and construction of railways and switches. During the course of turnout maintenance, this machine, provided with four tamping devices, follows the scientific working principle of “three-line track lifting and four-line tamping” and uses the sliding slewing device and the telescopic rotating device to achieve various tasks, such as the track lifting, track lining and leveling for railways and turnouts and the compacting for ballasts under sleepers on both steel track sides or at sleeper ends. As for this machine, the geometric parameters of railway track before and after operation may be measured and recorded by the on-board measuring system, and the operation may be carried out according to the set geometric parameters of track through the control system.
主要技術(shù)參數(shù)Overall dimension (L × W × H):32200 mm × 3080 mm × 3790 mm
Curb weight:100 t
Gauge:1435 mm
Rated power of engine:348 kW
Max. self-propelled speed:100 km/h
Max. towed speed:120 km/h
Pivot distance of front and rear bogies:14000 mm
Pivot distance of driven bogie; Front wheelbase of material trolley:5050 mm
Fore-and-aft wheel base of material trolley:6000 mm
Wheelbase of bogie:1800 mm
Emergency braking distance: ≤ 800 m (At a speed of 90 km/h on straight and level tracks)
Min. traveling radius:180 m
Min. working radius:180 m
Working speed:0~4 km/h
Working efficiency:?≤ 35 min (When tamping a No.12 single-way turnout)
＞ 500 m/h (On straight and level tracks spacing out 1840 sleeper for each kilometer)
Working width of turnout area:1750 mm (min.), 3300 mm (max.)
Working precision
Longitudinal level:≤ 3 mm
Lateral level:±2 mm
Versine:?±2 mm
