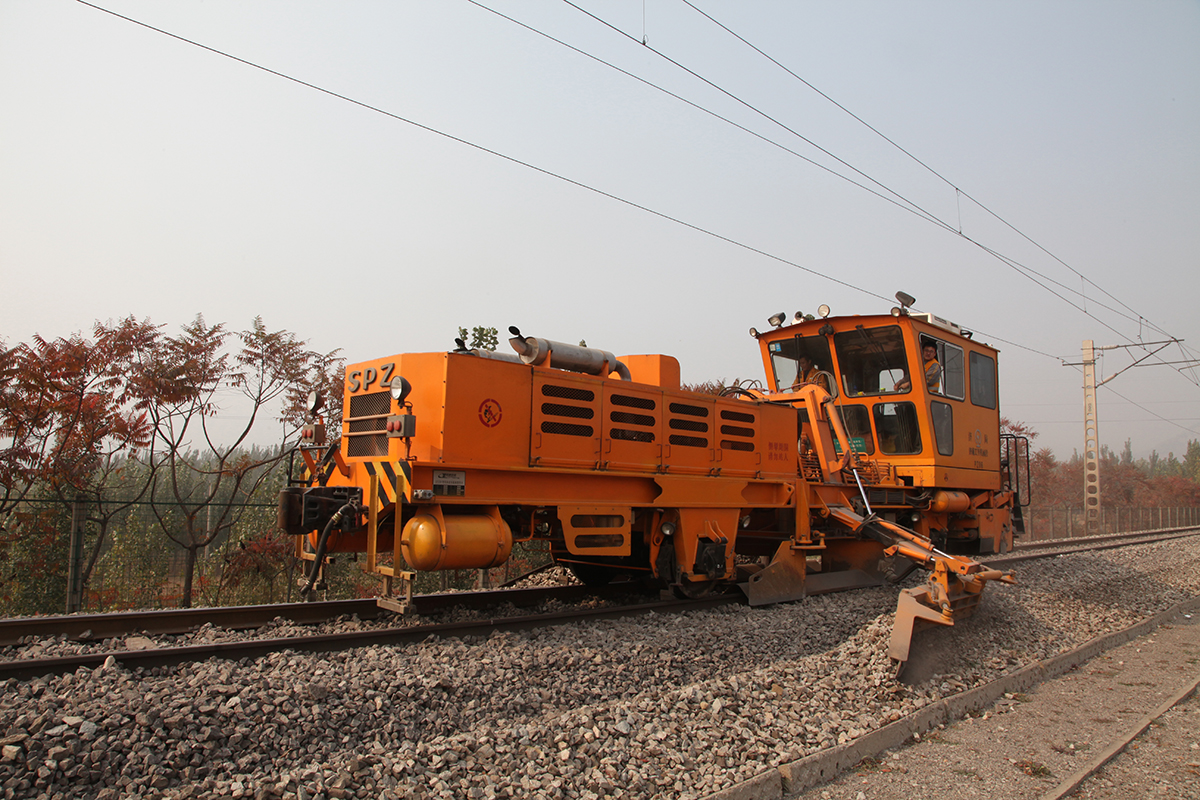

SPZ-200 Bidirectional Ballast Regulator
性能及特點
The SPZ-200 bidirectional ballast regulator completes the ballast regulating operation for the ballast bed through the middle plow, side plow, wing plow and other working equipment to make the ballast uniform and the section of ballast bed formed according to the technical requirements. The cleaning device effectively cleans the ballast remained on the rail crossties and fastener and collect it to the conveyor belt to the ballast bed shoulder, in order to make the railway neat and beautiful.
主要技術參數Overall dimension (L × W × H):13500mm×3050mm×3860mm
Total weight:28t
Gauge:1435mm
Rated power of engine:210kw
Max. traveling speed:80km/h
Max. towed speed:100km/h
Wheel base:5500mm?????????????????? ?
Emergency braking distance?:≤ 400m (At a speed of 80km/h on straight track)
Min. traveling radius:100m
Min. working radius:120m
Working speed:0~12km/h???????????????????????????????????????
Working efficiency:0 ~ 12 km / h
Max. working width:3300 mm (starting from the track center)
